PosiStageNet Sniffer

AVW PSN Sniffer (free)

The AVW PSN Sniffer is a free standalone Windows tool for monitoring and diagnosing PosiStageNet (PSN) network traffic. It enables technicians and engineers to view real-time 3D tracking data over UDP, making it ideal for troubleshooting show networks and system integration.

Software Overview

  • Version: 1.0 (Standalone)
  • Platform: Windows
  • Protocol: PosiStageNet (UDP Port 56565)

AVW PSN Sniffer Logo

What is PosiStageNet (PSN)?

PosiStageNet (PSN) is an open-standard network protocol used in the entertainment and live production industry.
It enables real-time transmission of 3D positional tracking data between systems such as:

  • Stage automation systems
  • Lighting consoles (e.g. grandMA3)
  • Media servers
  • Tracking systems

What Does a PSN Sniffer Do?

The AVW PSN Sniffer monitors PSN data directly from the network, helping diagnose configuration issues and verify system performance.

A PSN sniffer listens on UDP port 56565 and decodes PosiStageNet packets in real time. It allows you to:

  • Verify PSN data transmission
  • Monitor tracker positions and movement
  • Troubleshoot network or configuration issues
  • Confirm interoperability between systems

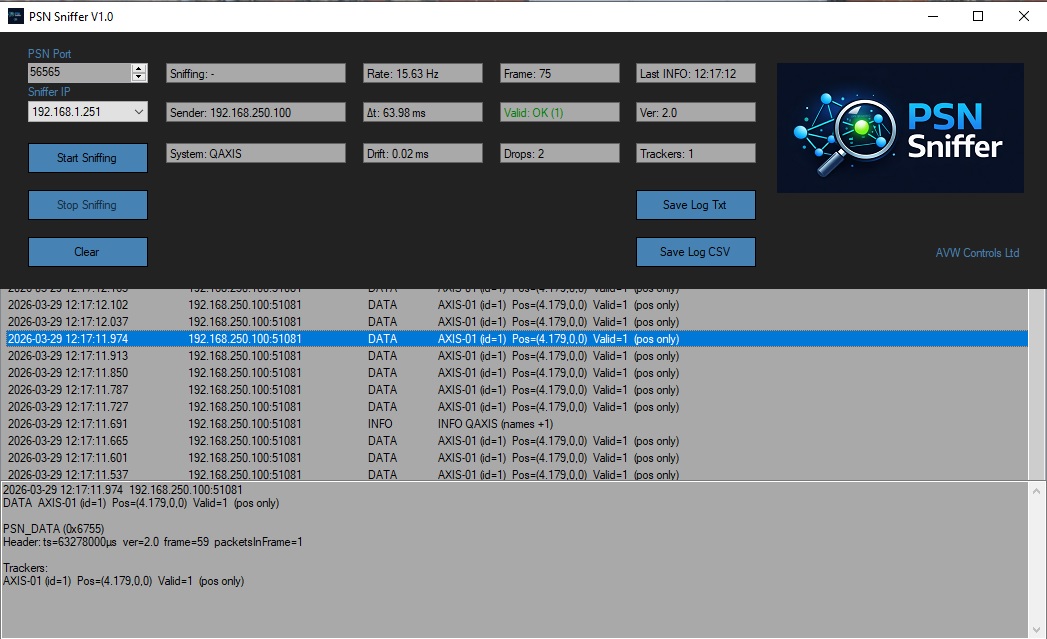

PSN Sniffer Screenshot


Download the AVW PSN Sniffer (Free)

Windows may warn about this file because it contains an .exe and is newly published. The file is safe and scanned. Contact AVW if you have issues trying to download it and we can email it to you.

Quick Start Guide

  1. Extract the ZIP: Move the .exe file to your preferred location.
  2. Connect to the Network: Ensure your PC is on the same subnet/VLAN as your PSN source.
  3. Allow Firewall Access: Permit the application on private networks when prompted.
  4. Select Network Interface: Choose the correct network adapter.
  5. Start Monitoring: Launch the application and begin sniffing PSN data.

Key Features

  • Real-Time PSN Decoding: Instant packet parsing
  • Full Tracking Visibility: X, Y, Z and rotation data
  • Lightweight & Fast: Minimal system overhead
  • Export: Text and CSV file export

Use Cases

  • Show commissioning and setup
  • Live production network troubleshooting
  • Verifying tracking system output
  • Diagnosing system integration issues

Software Disclaimer

Free Tool Provided “As-Is”

The AVW PSN Sniffer is provided as a free diagnostic utility. It is supplied “as-is”
without warranties of any kind, express or implied.

Liability

AVW Controls Ltd shall not be held liable for any damages, including network disruption,
hardware issues, or show delays resulting from use of this software.

Usage Note

This software passively captures UDP traffic on port 56565 and does not modify or inject data.

We recommend testing in a rehearsal or controlled environment before use on a live network.
